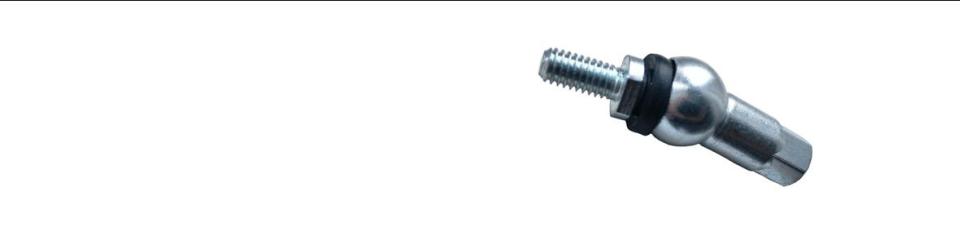

Axial Ball Joint
All dimensions in mm.
| Part Number | A | B min. | C | D | E | F | G | H | Ball Dia. |
Extraction Force (N) |
Weight (gm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ABJM05 | 22 | 10.2 | 8 | M5x0.8 | M5x0.8 | 9 | 10.2 | 7 | 8 | 30 | 15 |
| ABJM06 | 25 | 11.5 | 10 | M6x1.0 | M6x1.0 | 11 | 12.5 | 8 | 10 | 40 | 25 |
| ABJM08 | 30 | 14 | 13 | M8x1.25 | M8x1.25 | 13 | 16.5 | 11 | 13 | 60 | 53 |
| ABJM10 | 35 | 15.5 | 16 | M10x1.5 | M10x1.5 | 16 | 20 | 13 | 16 | 80 | 104 |
| ABJM12 | 35 | 15.5 | 16 | M12x1.75 | M12x1.75 | 16 | 20 | 13 | 16 | 80 | 104 |
| ABJM14 | 45 | 21.5 | 19 | M14x1.5 | M14x1.5 | 20 | 28 | `16 | 19 | 100 | 221 |
Material:
Ball Stud - AISI 1045 carbon steel.
Housing - AISI 1035 carbon steel.
Inner retaining ring - hard drawn spring steel.
Protective Finish:
Zinc and Clear Trivalent Plated. Ball stud and inner retaining ring are de-embrittled.
Assembly is lubricated.
RoHS Compliant.
Ball stud is retained by a captive internal wire ring.
For improved wear resistance the ball is induction hardened.
If a fitted gaiter is required then the suffix 'G' should be added to the part number e.g. ABJMG10
If 303/304 Stainless Steel is required the suffix 'SS' should be added to the part number e.g. ABJM10SS
If Marine grade 316 Stainless Steel is required the suffix 'SS316' should be added to the part number e.g. ABJM10SS316.
M5, M6, M8, M10, M12 M14 Axial Ball Joints.
